Patra Tanker 3 Rudder Not Functioning & Not Precision

Patra Tanker 3 Rudder Not Functioning & Not Precision (2016)

Job

1. Repair Rudder Indicator in the Steering Room

  • Cleanning module & indicator
  • Check termination
  • Measure resistance module & Rudder indicator
  • Measure input power supply
  • Calibrate indicator rouder

2. Rudder indicator Not terminated in the bridge space

  • Check wiring from indicator indicator to module
  • Measure input power supply (24V)
  • Check Termination on the module
  • Join Termination Rudder indicator to the Distribution Transmitter Module

3. Rudder Indicator is not precise

  • Measure 24V input power
  • Chek Soldering on the module
  • Measure the Resistance Components inside the module
  • Calibration module

Documentation


Patra Tanker 3 Rudder Indicator
Patra Tanker 3 Rudder Indicator
Patra Tanker 3 Rudder Steering Indicator
Patra Tanker 3 Rudder Steering Indicator
Patra Tanker 3 Rudder Steering Room Indicator
Patra Tanker 3 Rudder Steering Room Indicator

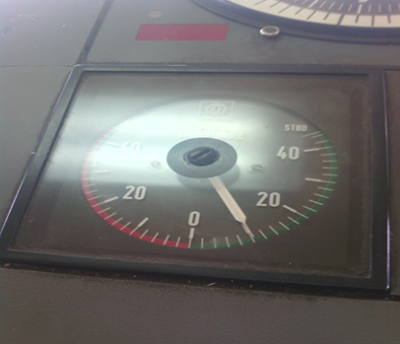

Patra Tanker 3 Rudder Table Indicator
Patra Tanker 3 Rudder Table Indicator
Patra Tanker 3 Rudder Transmitter Module
Patra Tanker 3 Rudder Transmitter Module

Patra Tanker 3

Patra Tanker 3
